KTM 125 Lectron Billetron 38mm Carburettor Latest Model.. 2 Stroke - Anodised edition!

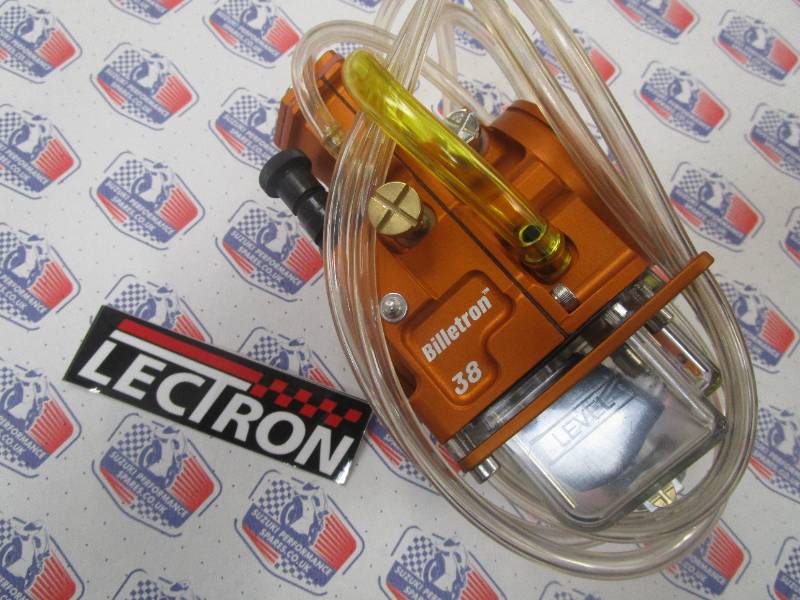

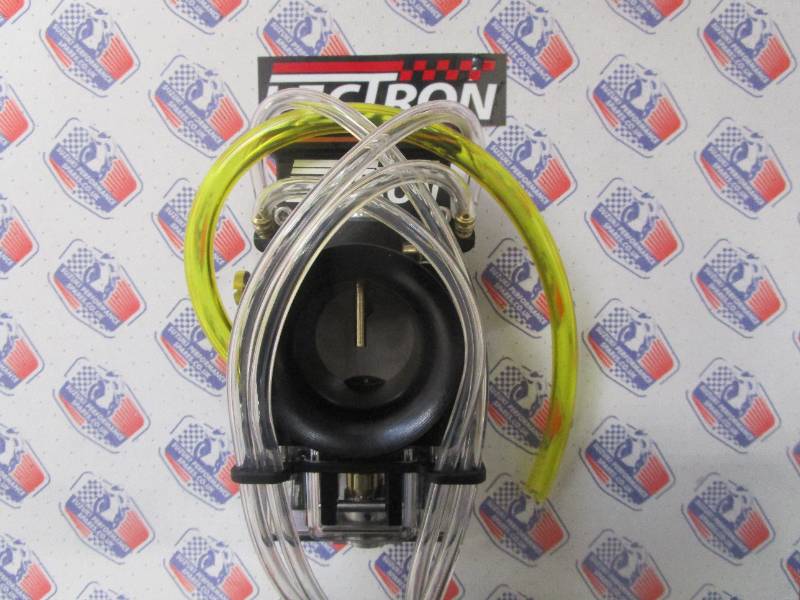

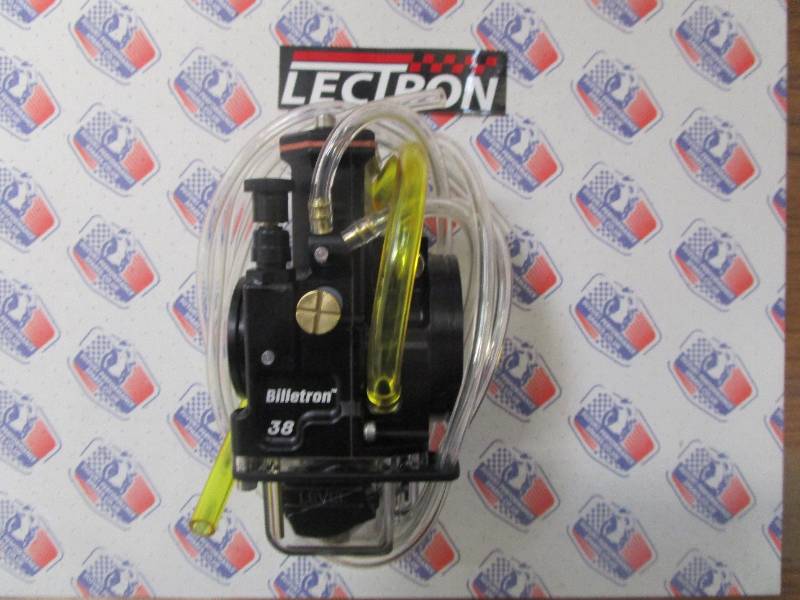

BILLETRON 38mm 2-Stroke Carburettor by Lectron Fuel Systems

With both increased performance and an improved user experience, the Billetron 38mm is a game changer... The all new Billetron aluminium construction reduces the weight of the carburettor which adds to the impact resistance and visual appeal of the carburettor. The redesigned bore, along with the H-style slide, give a faster response and better bottom end hit. The choke and idle/power jet screw are now more accessible allowing for quick tuning on the track or trail. Shorter than the H-series, in both length and height, it fits more like an OEM carburettor. It also uses the stock throttle and cable making installation easier than ever.

• Technical Specifications: Machined billet aluminium construction reduces weight and increases strength
• Reuses stock throttle and cable Redesigned bell and bore for increased bottom end performance
• Shorter overall length (78mm) and height allow for a better fit
•  Choke redesigned and moved to the left side for easier and more consistent usage Larger and more accessible idle screw with finer threads for more accurate tuning
• Power Jet screw now located horizontally on the left side, can be turned by hand for quick and easier adjustments
• Stronger clear float bowl with bowl drain and integrated g-force kit New float system with proprietary, high flow, sprung needle seat valve
• New metering rod adjustment mechanism allows for 1/8th turn adjustments Aluminium H-style slide Relocated vents Jetless - No jets Automatically compensates for elevation and temperature changes Dramatic increase in fuel economy Performance Improvements: Hits similar to a well tuned jetted carburettor with a smoothness and consistency of a metering rod carburettor
• Smoother power delivery than stock Significantly more bottom end hit Significantly improved throttle response Faster power jet activation
• The new slide design and metering rod location improve idle Finer idle adjustments
